Selecting the right equipment for these environments is crucial, and pass boxes stand as pivotal guardians, ensuring seamless material transfer without compromising sterility. This expert guide by Vietnam Cleanroom Equipment (VCR) peels back the layers on pass boxes, helping you navigate the selection process with confidence.

1. Sentinels of Sterility: The Role of Pass Boxes

Cleanrooms exist in a spectrum of cleanliness levels, dictated by the specific manufacturing processes at play. Each level demands robust control measures, primarily air filtration, positive pressure maintenance, and thorough cleaning protocols. However, material transfer poses a unique challenge. Enter the pass box: a vestibule mounted on the cleanroom wall or floor, safeguarding its integrity during material transfers.

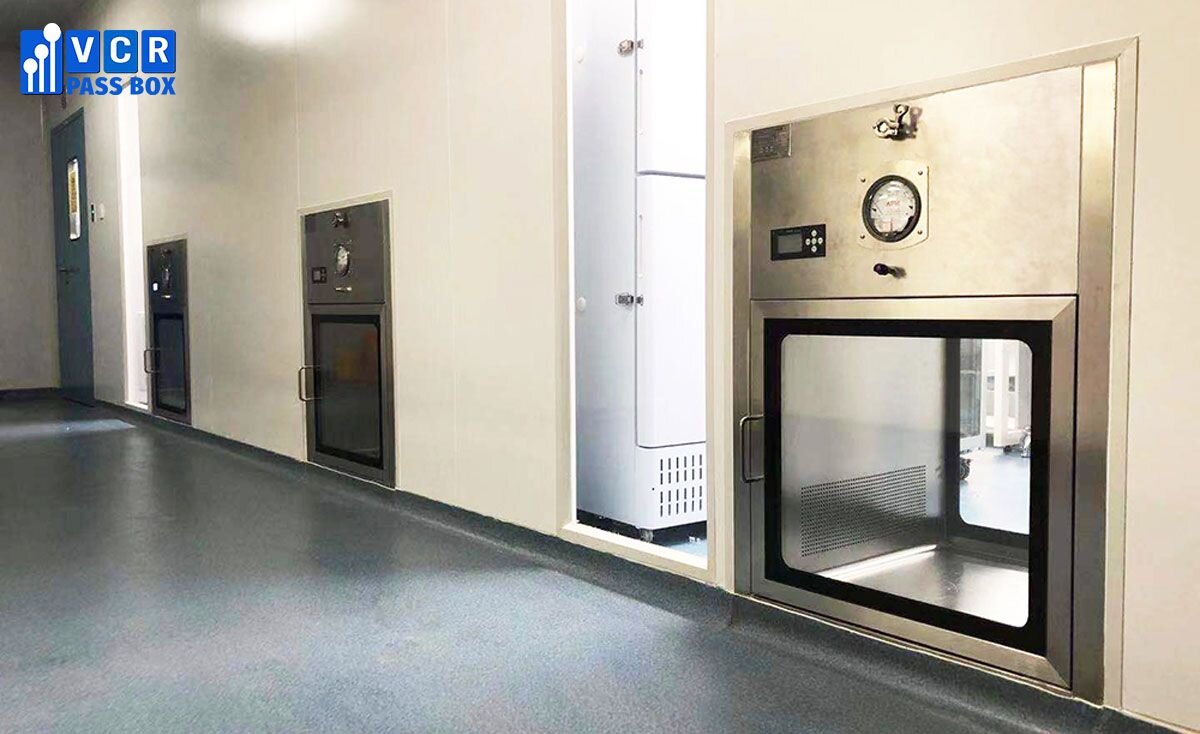

pass box cleanroom
Pass Box in Cleanroom

Pass boxes go beyond preventing cleanroom air leakage. They:

  • Depressurize the cleanroom during transfer, minimizing the outward flow of potentially contaminated air.
  • Reduce cleanroom personnel entry, minimizing contamination risks associated with human movement.
  • Serve as an efficient transfer point, optimizing workflow and maintaining air quality.
  • Facilitate easy cleaning and maintenance, crucial for upholding cleanroom standards.

See more: What is Pass Box Cleanroom

2. Unveiling the Mechanism: How Pass Boxes Operate

The heart of a pass box lies in its interlocked doors. This ingenious system ensures only one side can be open at a time, effectively preventing cross-contamination between clean and non-clean zones. Here's how it unfolds:

  • Dirty Air Side: An operator opens the pass box door on the "dirty" side, triggering the interlock to automatically lock the cleanroom-side door.
  • Material Transfer: Once the cleanroom door is unlocked, the operator transfers materials into the cleanroom.
  • Cleanroom Entry: After transfer, the cleanroom door closes, re-engaging the interlock and preparing the pass box for another cycle.

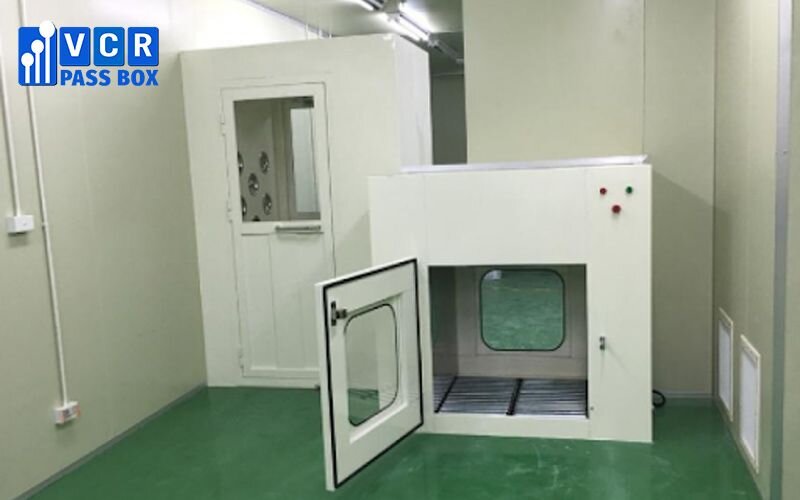

Pass Box Operate
Pass Box Operate

See more: Pass box for pharmaceuticals

3. Selecting the Perfect Fit: Tailoring Pass Boxes to Specific Needs

While the core function of all pass boxes remains the same – secure transfer with minimal contamination – specific needs demand distinct considerations. VCR offers three options, each meticulously designed for optimal performance in diverse settings:

a. Standard Stainless Steel:

  • Ideal for most laboratory and manufacturing processes.
  • Smooth, easy-to-clean interior facilitates effortless sanitation.
  • Formed-and-stitch-welded seams, lipless floor, and smooth gaskets minimize contaminant harborage.
  • Built-in mechanical interlock for reliable operation.
Selecting pass box
Choosing Pass Box

b. Fully Welded Body:

  • Perfect for aseptic manufacturing, compounding pharmacies, and stringent isolation procedures.
  • Seamless, formed-radius corners prevent particle accumulation.
  • Lipless interior floor and easy-to-clean gaskets ensure thorough sanitation.
  • Stainless steel T-handle door latch for user convenience.

c. Bio-Design:

  • Designed for bio-contaminant and "germ-free" processes like terminal sterilization and nanotechnology.
  • Coved radius, seamless interior, and knife-edge hatch openings enhance cleanability.
  • One-piece door gasket and removable hinges simplify thorough cleaning and autoclaving.

See more: 9 Considerations For Dynamic Pass Box

Beyond these core types, VCR caters to specialized needs with:

  • Fire-rated doors for enhanced safety.
  • Lead-lined doors for specific material handling requirements.
  • Pneumatic vertical sliding doors for effortless operation in demanding environments.

Partnering with VCR: Your Comprehensive Cleanroom Solution

VCR goes beyond providing high-quality pass boxes. We are your trusted partner in crafting and maintaining pristine cleanrooms, offering:

  • Expert consultation and guidance: Our knowledgeable team helps you select, install, and maintain the perfect pass box for your unique needs.
  • Comprehensive after-sales support: We ensure your equipment operates seamlessly with ongoing maintenance and support.
  • A diverse range of cleanroom solutions: From FFU fan filter units to cleanroom air filters and isolator cabinets, we provide everything you need for a flawlessly controlled environment.

Embrace the power of expertly chosen pass boxes and partner with VCR to elevate your cleanroom operations to new heights of sterility and efficiency. Contact us today and let us help you secure the future of your manufacturing processes, one pristine transfer at a time.
