This guide, powered by Vietnam Cleanroom Equipment (VCR)'s expertise, demystifies the process and equips you with the knowledge to install your pass box flawlessly.

1. Pre-Installation: Setting the Stage for Success

1.1 Demystifying Pass Box Types:

  • Static Pass Box: Ideal for connecting cleanrooms with similar cleanliness levels, relying on air pressure differentials for contamination control.
  • Dynamic Pass Box: Employs HEPA filtration and a fan system to actively purge contaminants, making it the preferred choice for transferring items between cleanrooms of varying cleanliness levels.

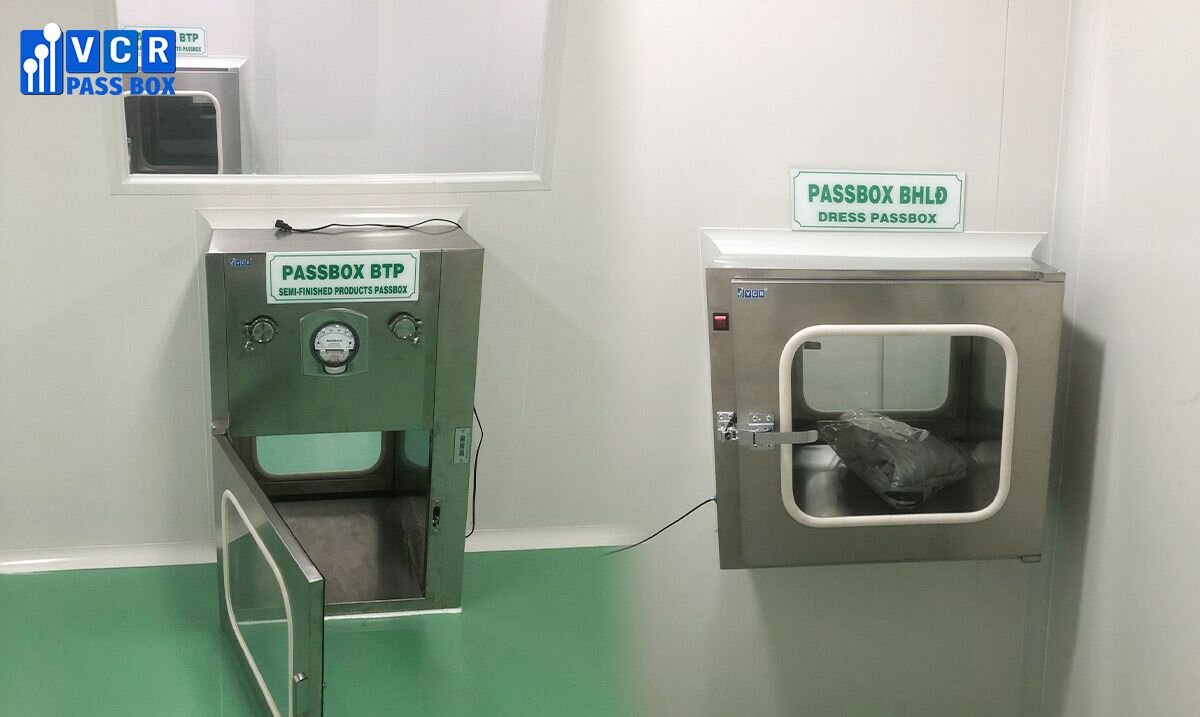

Pass Box Cleanroom
Dynamic Pass Box and Static Pass Box

See more: Delivering pass box

1.2 Size Matters:

  • Internal size depends on the items being transferred.
  • External size is crucial for installation planning. Tip: Consult your supplier for precise dimensions during the design phase.

1.3 Gearing Up:

  • Essential tools for drilling and mounting.
  • Adhesive for sealing gaps and ensuring a clean finish.
  • Optional: Mounting bars to eliminate dust-collecting corners.

See more: Pass box specifications

2. Installation Walkthrough: Precision Meets Efficiency

2.1 Drilling with Intent:

  • Mark the panel wall based on the pass box's external size, leaving a 10mm buffer.
  • Drill and clean the hole meticulously.

2.2 Optimizing Door Swing:

  • VCR pass boxes offer four opening styles – choose the one that best suits your cleanroom layout and workflow.
  • Discuss any special requirements with your designer to ensure optimal operation.

2.3 Seamless Placement:

  • Carefully insert the pass box into the drilled hole. Consider using lifting equipment for larger models.

2.4 Secure and Sanitary Finishing Touches:

  • Apply adhesive around the pass box to secure it and seal the gap.

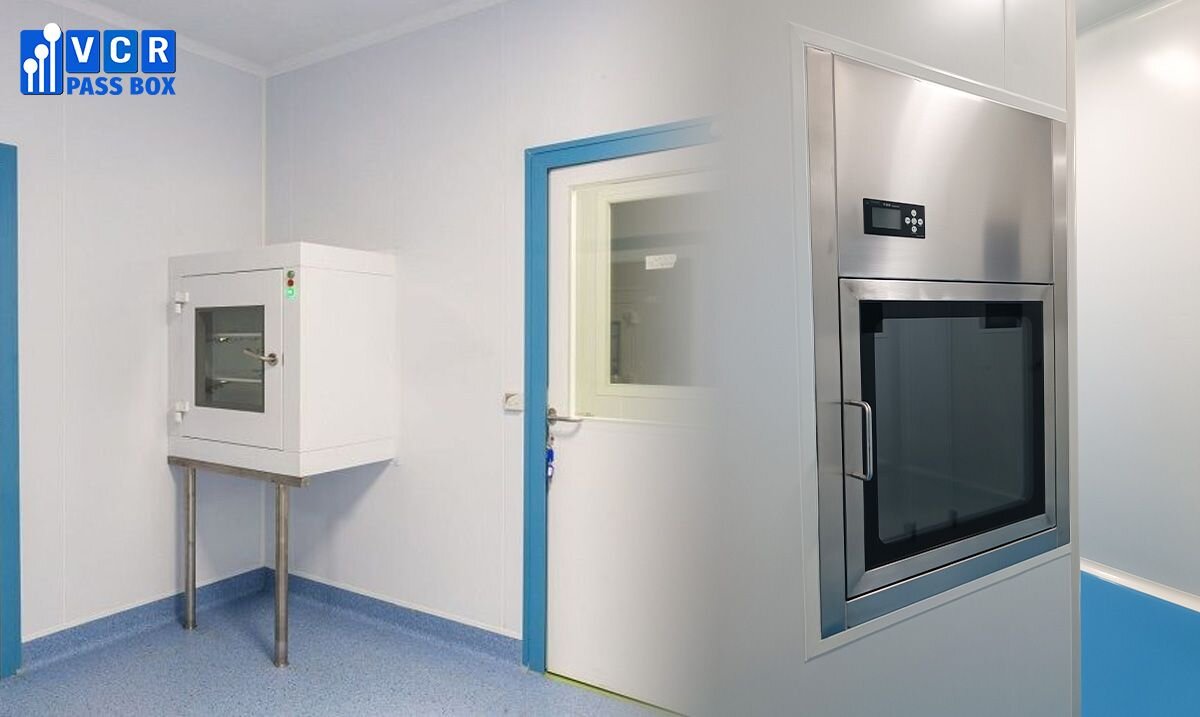

pass box installation
Pass Box in Cleanroom

See more: Pass box for pharmaceuticals

3. Post-Installation: Ensuring Optimal Performance

  • Thoroughly clean the pass box with alcohol.
  • Test the door interlock and UV light functionality.
  • Congratulations! Your pass box is ready to safeguard your cleanroom environment.

Bonus Tip: VCR's commitment to quality extends beyond installation. Their comprehensive after-sales support ensures your pass box operates flawlessly for years to come.

By following these expert guidelines and partnering with VCR, you can transform pass box installation into a seamless and efficient process, paving the way for a pristine and productive cleanroom.
