Pass Box Specifications

Pass box dimensions are determined by two factors: internal size and external size. The internal size is particularly crucial as it dictates the types of materials that can be transferred through the pass box.

Summaries

Pass box dimension
1. Standard static pass box size
2. Standard dynamic pass box size
Pass box material
Interlock system for pass box
Power
HEPA filter
Air velocity
Static pass box tech specifications
Dynamic pass box tech specifications

Have you ever found yourself in a conversation with someone discussing a pass box, but felt lost because you couldn't understand what they were talking about or what was listed in the specifications? We understand that this situation occurs frequently, so we've decided to simplify some commonly heard basics for you.

Pass box dimension

Pass box dimensions are determined by two factors: internal size and external size. The internal size is particularly crucial as it dictates the types of materials that can be transferred through the pass box.

Static Pass box

Standard static pass box size

Type	500	600
Internal size	500 x 500 x 500	600 x 600 x 600
External size	660 x 550 x 600	760 x 650 x 600

Standard dynamic pass box size

Type	500	600
Internal size	500 x 500 x 500	600 x 600 x 600
External size	570 x 580 x 900	770 x 680 x 1200

Pass box material

Pass boxes are typically constructed from stainless steel. However, some pass boxes may feature a powder-coated steel exterior while maintaining a stainless steel surface internally.

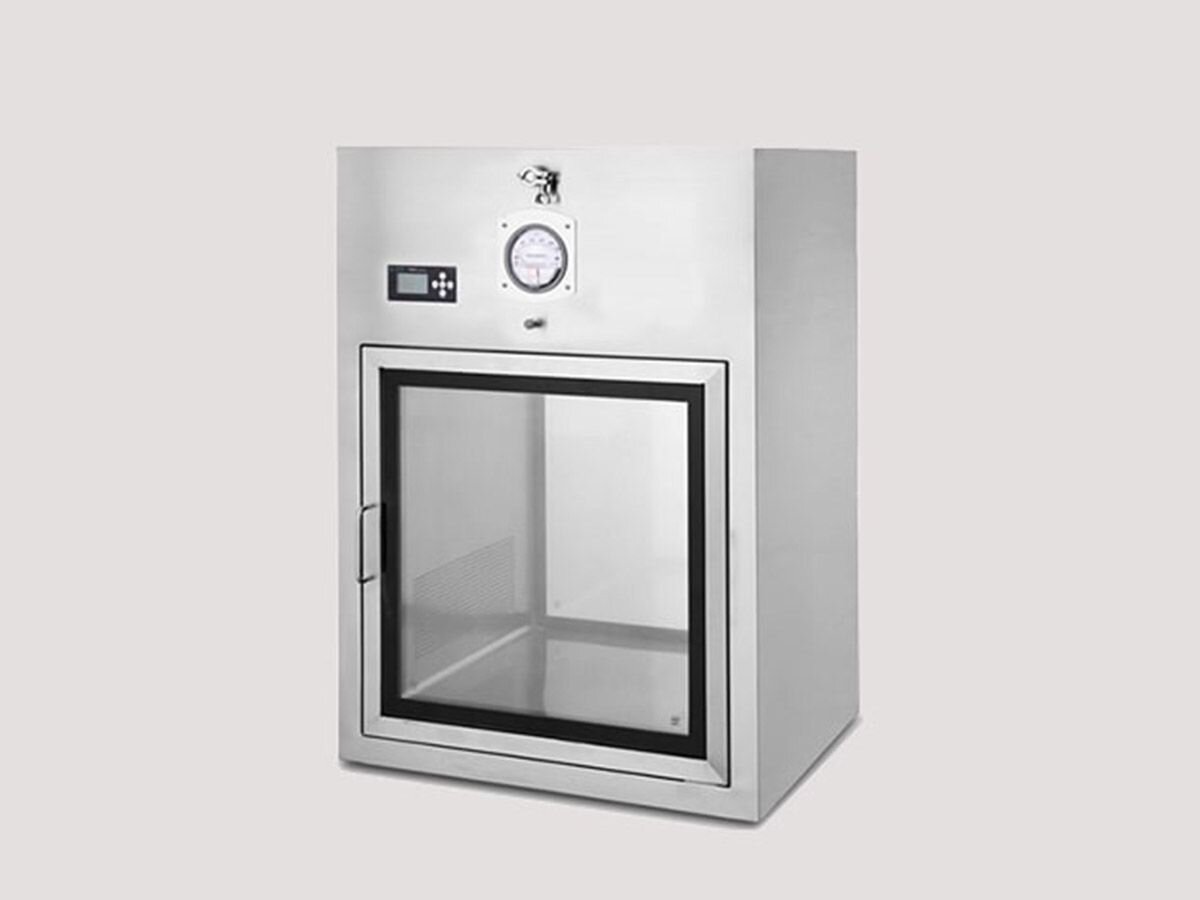

Dynamic pass box

Interlock system for pass box

Pass boxes are equipped with either a mechanical or electronic interlocking system to prevent both doors from being opened simultaneously.

Power

The power supply for pass box is typically 220V.

HEPA filter

Dynamic pass box utilizes HEPA filters with a filtration efficiency of up to 99.99%.

Air velocity

The air velocity within pass boxes is maintained at approximately 0.45m/s with a variance of ± 20%.

Static pass box tech specifications

Model	VCR500SP	VCR600SP	VCR700SP	VCR800SP
External size (W×D×H)mm	620×560×580	720×660×680	820×860×780	920×860×880
Internal size (W×D×H)mm	500×500×500	600×600×600	700×700×700	800×800×800
Casing material	Stainless steel/ Powder-coated steel
Internal material	Powder-coated steel
Interlock	Mechanical interlock/ Electronic interlock
Power	20/ 50Hz

Dynamic pass box tech specifications

Model	VCR500DP	VCR600DP	VCR700DP	VCR800DP
External size (W×D×H)mm	570x580x900	770x680x1200	920x830x1350	970x880x1400
Internal size (W×D×H)mm	500×500×500	600×600×600	750×750×750	800×800×800
Casing material	Stainless steel/ Powder-coated steel
HEPA Filter	Hepa H13 - 99,99%@0.3μm
Internal material	Powder-coated steel
Interlock	Mechanical interlock/ Electronic interlock
Power	20/ 50Hz
